Brass Pull-to-Release Cable Gripper for 3.0-4.0 mm Wire Rope with Chrome Finish
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | W-mate |
| Certification: | ISO9001/RoHS |
| Model Number: | 260917-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | US$2.3-2.05 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Material: | Brass (body) | Surface Finish: | Chrome Plated |
|---|---|---|---|
| Body Diameter: | 18 Mm | Flange Diameter: | 26 Mm |
| Cylindrical Body Height: | 29 Mm | Pull-head Diameter: | 13 Mm |
| Pull-head Height: | 12 Mm | Wire Rope Diameter: | 3.0-4.0 Mm |
| Highlight: | Brass Cable Gripper for 3.0-4.0 mm Wire,Pull-to-Release Cable Gripper Chrome Finish,Brass Wire Rope Gripper for Cable Suspension |
||
Product Description
[260917-04]
Product Overview

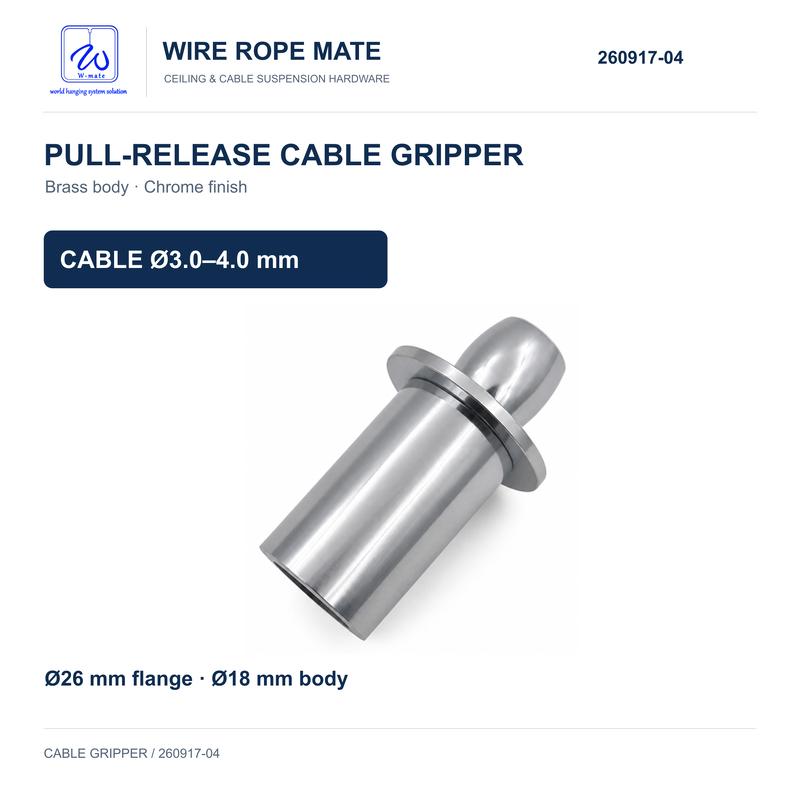

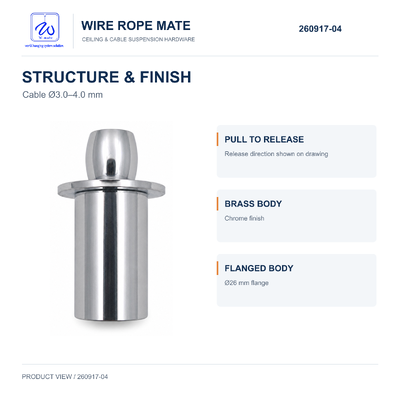

The 260917-04 is a brass cable gripper for 3.0-4.0 mm wire rope. It has a chrome-plated finish, an 18 mm cylindrical body diameter and a 26 mm flange diameter. The drawing shows wire entry through the cylindrical-body end and a pull-to-release head at the opposite end. Check the mating geometry and operating instructions for the intended assembly.
Key Features
- For 3.0-4.0 mm wire rope, providing a defined cable size range for component selection.
- Pull-to-release operation is shown in the drawing for release-method matching.
- An 18 mm body diameter and 26 mm flange diameter help check mating clearance.
- A brass body with a chrome-plated finish defines the material and surface specification.
Technical Specifications
| Model | 260917-04 |
|---|---|
| Brand | W-mate |
| Material | Brass (body) |
| Surface Finish | Chrome plated |
| Body diameter | 18 mm |
| Flange diameter | 26 mm |
| Cylindrical body height | 29 mm |
| Pull-head diameter | 13 mm |
| Pull-head height | 12 mm |
| Wire rope diameter | 3.0-4.0 mm |

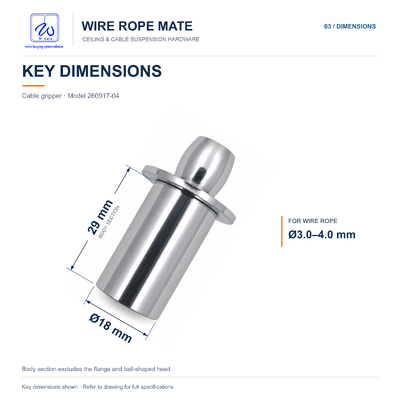

Product Images & Dimensions
Company Profile
FAQ
Q: What products do you supply?
A: We supply cable grippers, wire rope assemblies, ceiling attachments and suspension kits for lighting and acoustic panel applications.
Q: Do you provide free samples?
A: Yes, we provide free samples. Shipping costs are paid by the customer. Please let us know which product you would like to evaluate so we can arrange the sample details.
Q: What is the lead time for standard products?
A: Standard products are usually ready for dispatch within 20 days. The exact dispatch date will be confirmed with your order. Shipping time is additional and depends on the destination and shipping method.
Q: What customization options are available?
A: We offer customization of cable length, product dimensions, surface finish, packaging and logos. Please send your drawings or requirements so we can confirm the specifications and quotation.
Q: What information do you need for a quotation?
A: Please send the product model, photo or drawing, required specifications and quantity, and delivery destination. For suspension kits, please also specify the cable length and required fittings. Include any logo or packaging requirements in your inquiry.
