Brass Cable Looping Gripper with M5 Thread for 0.8mm to 1.2mm Cable and 15kg Safe Working Load
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | W-mate |
| Certification: | ROHS |
| Model Number: | cable looping grippers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $0.80-0.85 |
|
Detail Information |
|||
| Material: | Brass | Type: | Wire Rope Clip |
|---|---|---|---|
| Color: | Nickel/Chrome/Black/White | Cable Construction: | 1*7,7*7,1*19,7*19 |
| Thread Length: | 10.00 MM | Cable Diameter: | 0.8 MM To 1.2 MM |
| Safe Working Load: | 15.00 KG | Mini Breaking Load: | 12.5kg To 500kg |
| Save Work Load: | 2.5kg To 100kg | Size (L*W*H): | 15*15*8.5 To 42*42*22 |
| MOQ: | 100 Pcs | Thread Type: | M5 |
| Gripper Type: | Cycle Self-locking | Mounting Type: | Ceiling Suspended |
| Double Sided: | Yes | ||
| Highlight: | M5 Thread Cable Looping Gripper,0.8mm to 1.2mm Cable Looping Gripper,15kg Safe Working Load Cable Looping Gripper |
||
Product Description

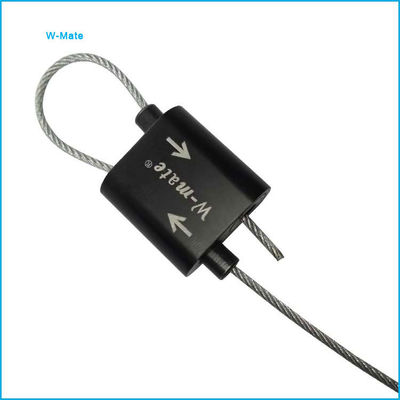

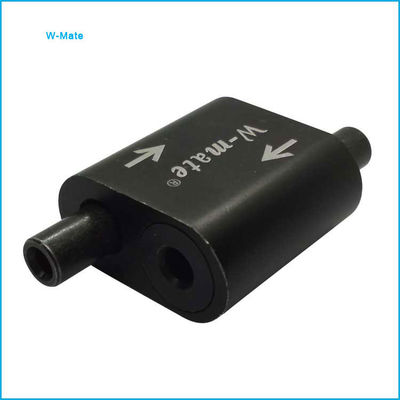

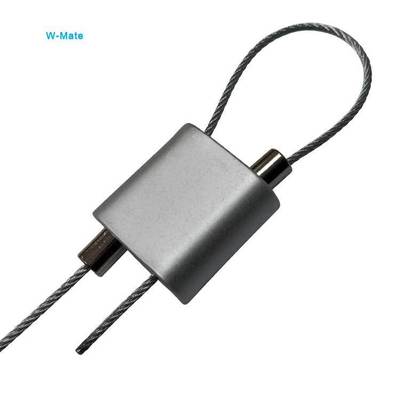

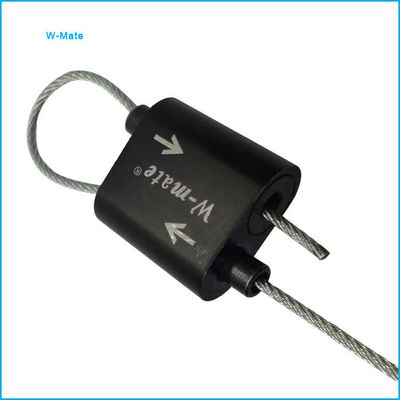

Ceiling Suspended Hanging Kit Double Sided Brass Cable Looping Gripper M5 Black Cycle Self-locking Cable Gripper
Premium Ceiling Hanging Kit with Self-locking Cable Gripper
High-quality OEM/ODM ceiling hanging kit featuring durable steel wire cycle lock cable gripper and looping gripper cable. Designed for secure and reliable suspension applications.
Product Images
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Working Load | Size (L×W×H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15×15×8.5mm |
| φ1.0mm | 50kg | 10kg | - |
| φ1.2mm | 80kg | 16kg | 20×18×10mm |
| φ1.5mm | 130kg | 26kg | - |
| φ1.8mm | 180kg | 36kg | 25×25×12mm |
| φ2.0mm | 200kg | 40kg | - |
| φ2.5mm | 300kg | 60kg | 30×30×15mm |
| φ3.0mm | 400kg | 80kg | - |
| φ4.0mm | 450kg | 90kg | 42×42×22mm |
| φ5.0mm | 500kg | 100kg | - |

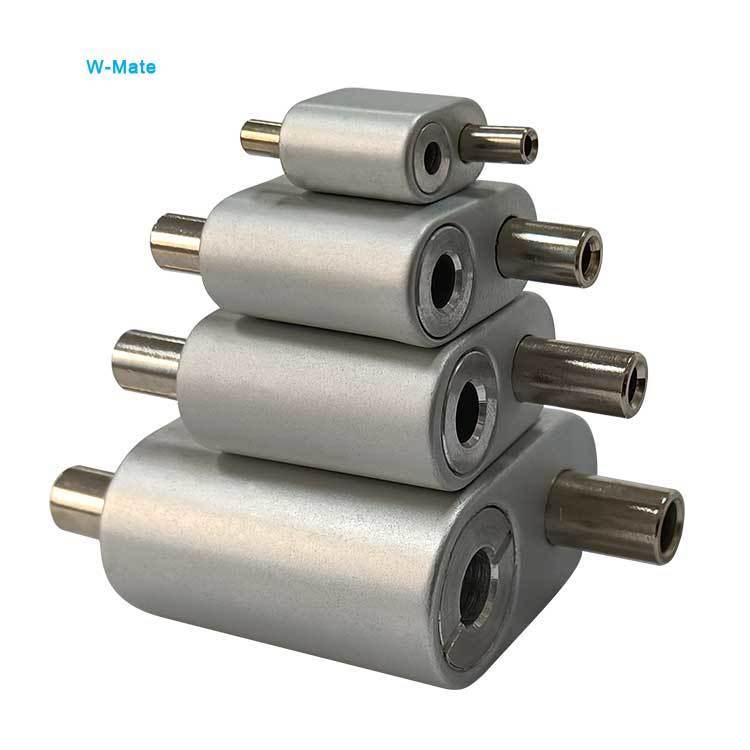

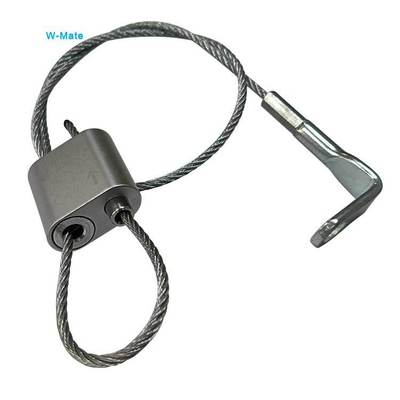

Additional Product Views
