1.5MM Adjustable Cable Looping Gripper with 100kg Load for Lighting Systems and 7 Days Delivery
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | W-mate |
| Certification: | ROHS |
| Model Number: | WR21011102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | $0.55-0.97 |
|
Detail Information |
|||
| Material: | Stainless Steel, Aluminium+Brass | Type: | Wire Rope Clip |
|---|---|---|---|
| Surface Finish: | Nickel | Cable Diameter: | φ0.8mm, φ1.0mm, φ1.2mm, φ1.5mm, φ1.8mm, φ2.0mm, φ2.5mm, φ3.0mm, φ3.5mm, φ4.0mm, φ5.0mm |
| Mini Breaking Load: | 12.5kg, 50kg, 80kg, 130kg, 180kg, 200kg, 300kg, 400kg, 450kg, 500kg, 600kg | Safe Work Load: | 2.5kg, 10kg, 16kg, 26kg, 36kg, 40kg, 60kg, 80kg, 90kg, 100kg, 120kg |
| Size (L*W*H): | 15*15*8.5, 20*18*10, 25*25*12, 30*30*15, 42*42*22 | MOQ: | 100pcs |
| Packaging: | PE Bag+inner Box+carton | Delivery Time: | 7 Days |
| Sample Availability: | Freely Supplied | OEM Services: | Provided |
| Customization: | Material, Color, Dimension | Lead Time: | 15 Days |
| Defective Rate: | <0.2% | ||
| Highlight: | 1.5MM Cable Looping Gripper,100kg Load Wire Rope Clip,7 Days Delivery Looping Cable Adjuster |
||
Product Description

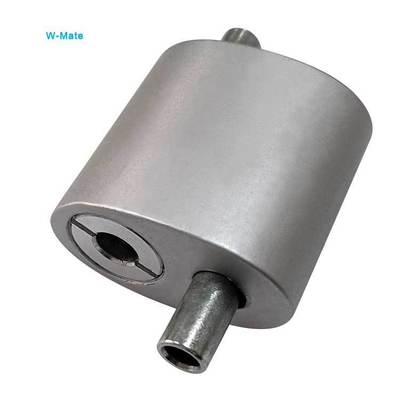

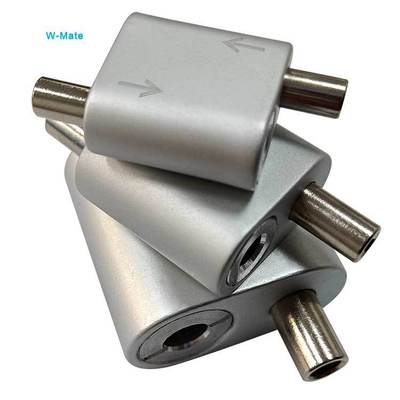

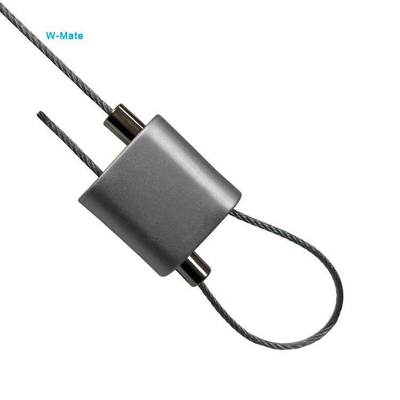

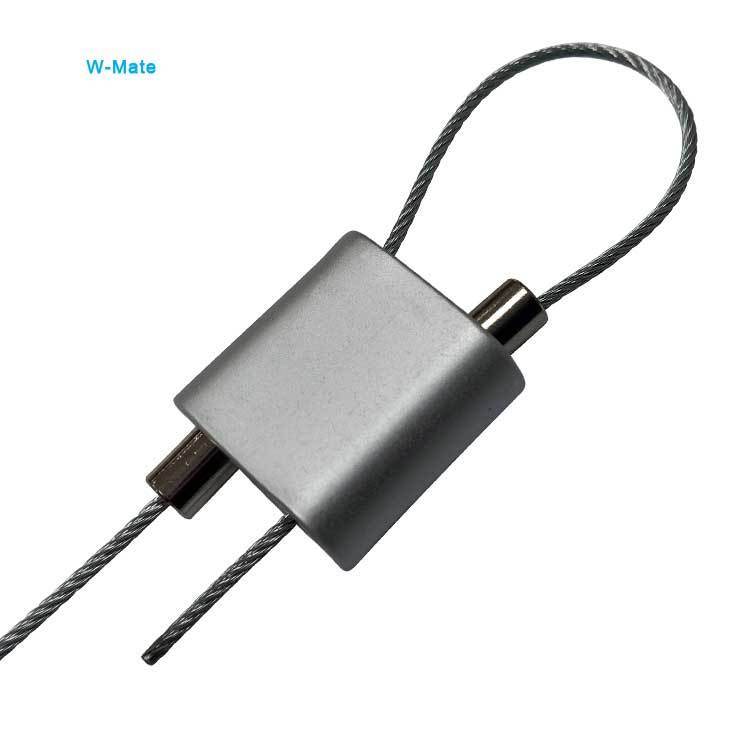

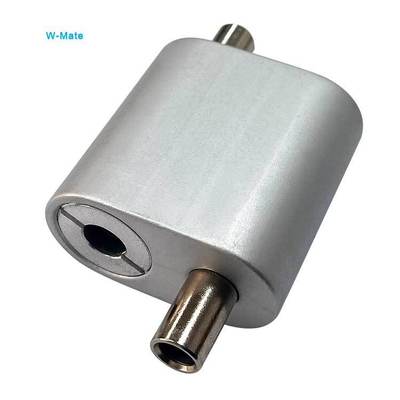

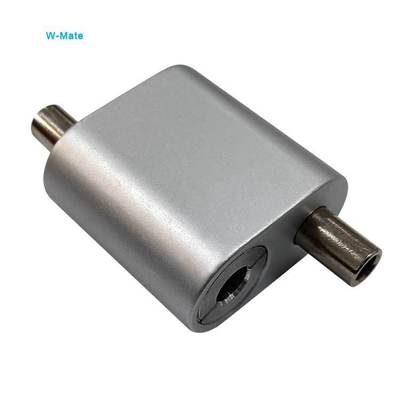

New Designed 1.5MM Lights Fixture Adjustable Hardware Brass Cable Looping Gripper for Hanging Lamp
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | 42*42*22 |
| φ5.0mm | 600kg | 120kg |
Frequently Asked Questions
Why choose our products?
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Complete inspection equipment
- Customizable specifications including material, color, and dimensions
- Professional QA team
- Superior after-sales services
How do we design ceiling suspension cables/kits?
We consider multiple factors including workload, safety, abrasion resistance, environment, cycle life, flexibility, and cost when designing ceiling suspension solutions.
How is quality controlled?
We implement four inspections before and after production, with complete QC inspection processes and solutions.
How to place an order?
We manufacture to customer specifications. Please provide complete information including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and Remarks.
What is the lead time?
Typically 15 days, depending on order size. We can expedite for urgent requirements.
Shipping options and timelines:
- Express (DHL, UPS, TNT, FedEx): 3-5 days
- Sea Freight: We'll provide details based on your port
- Client-designated agent: Provide contact details for arrangement
How are faulty products handled?
Our defect rate is below 0.2%. During guarantee period, we replace small quantities with new orders. For batch issues, we repair/resend or discuss solutions including recall as needed.
