Ceiling Absorber Anchor Adjustable Suspension Kit Connect Safety Hook
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | W-Mate |
| Certification: | SGS |
| Model Number: | 2024062209 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag +PP bag + carton (if you have other requirements, please contact us) |
| Delivery Time: | 10-15Work Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/month |
|
Detail Information |
|||
| Product Name: | Ceiling Absorber Anchor Adjustable Suspension Kit | Material: | Zinc Alloy+Brass+Galvanized |
|---|---|---|---|
| Sample: | Free Sample | Steel Wire Construction: | 7x7 |
| Color: | Original Metal Color | Installation Mode: | DIY |
| High Light: | Connect Safety Hook Ceiling Absorber Anchor,Safety Hook Ceiling Absorber Anchor,Adjustable Suspension Kit Ceiling Absorber Anchor |
||
Product Description
Ceiling Absorber Anchor Adjustable Suspension Kit Connect Safety Hook
Acoustic ceiling suspension system - Application:
They are also used for these purposes: Keep outside noise out of the room, keep the noise created in the room from being heard outside of the room, or simply to improve the quality of sound in the room.
The last purpose is deemed the most important when the tiles are used in recording/sound studios and home theaters.
Acoustic ceiling suspension system - Installation and Benefits:
Suspended ceilings were originally developed as an inexpensive way to hide the wiring, plumbing, or ductwork, or to allow those features to be easily maintained.
But it quickly became clear that acoustic ceiling tiles can be used to add acoustic control to the room.
Technical parameter:

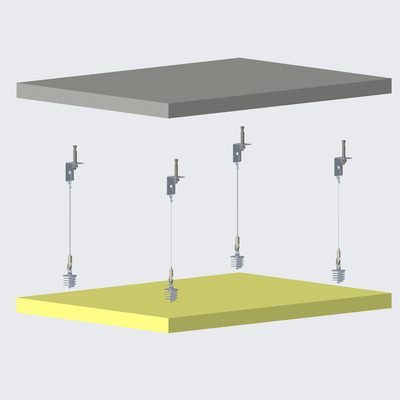

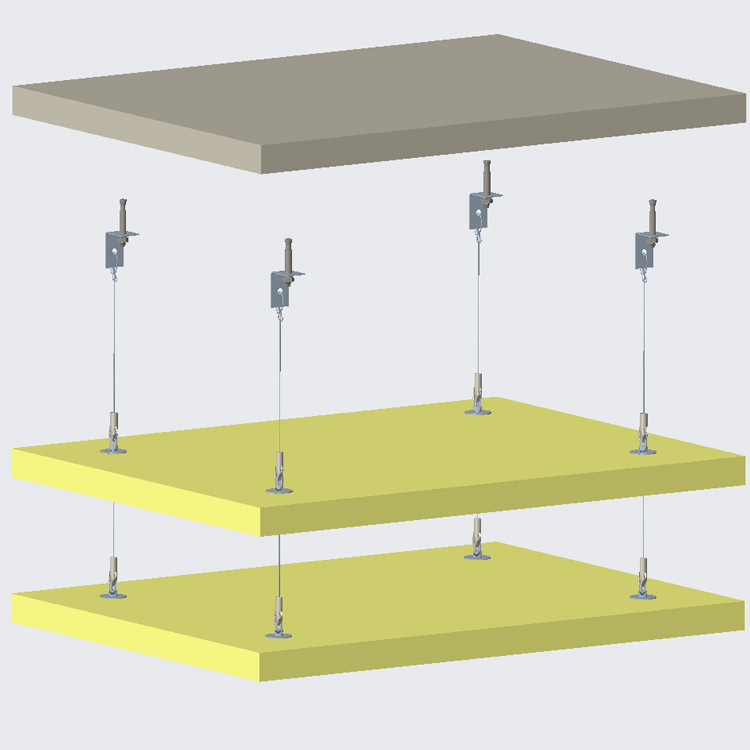

Attaching the suspension system to the structure (eg. concrete soffit):
Ensure that the structure is solid and has a load-bearing capacity of at least 10 kg.
When fixing a concrete structure, drill a hole 30 mm deep with a 6 mm diameter
drill bit. Protect the M6 thread on the top fixing dowel before tapping it into the
drilled hole. Before proceeding with the installation, check that the dowel has
expanded properly. At this stage, only the thread should be visible.
Attach the wire to the fixing points. Slide the wire into the hook, the system locks
automatically. Raise the baffle and affix the hook to the spiral anchors on both
fixing points. Attach the hooks to all of the spiral anchors. Ensure all hooks are
attached before raising the baffle to the required height
1. Screw ceiling anchor with wire
Products Description:

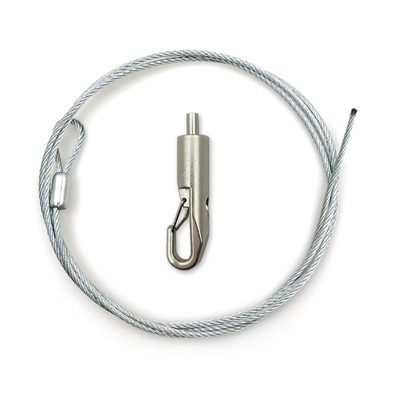

| Connect Adjustable Wire Hanger | 1500/2000/5000MM |
| Connect Covering Cup | 16*17MM or Eye Bolt |

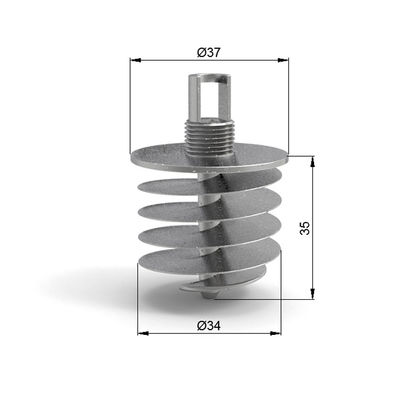

| Connect Absorber anchor | 2*22*48MM&37*35MM |
| Hook Cable Gripper | 10*41MM&10*32MM |
Technical parameter:
Attaching the suspension system to the structure (eg. concrete soffit):
Ensure that the structure is solid and has a load-bearing capacity of at least 10 kg.
When fixing a concrete structure, drill a hole 30 mm deep with a 6 mm diameter
drill bit. Protect the M6 thread on the top fixing dowel before tapping it into the
drilled hole. Before proceeding with the installation, check that the dowel has
expanded properly. At this stage, only the thread should be visible.
Attach the wire to the fixing points. Slide the wire into the hook, the system locks
automatically. Raise the baffle and affix the hook to the spiral anchors on both
fixing points. Attach the hooks to all of the spiral anchors. Ensure all hooks are
attached before raising the baffle to the required height
1. Screw ceiling anchor with wire
Our advantage:
The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile test at the factory to ensure the quality and safety of the products.
Wire Rope Mate specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.
The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.
