Caddy Aircraft Cable Hangers Wire Rope Suspension Hanging Kit Double End Exit Aircraft Cable Looping Gripper
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | W-mate |
| Certification: | SGS,RoHS |
| Model Number: | LG1015 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag +PP bag + carton (if you have other requirements, please contact us) |
| Delivery Time: | 10-15Work Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/month |
|
Detail Information |
|||
| Product Name: | Double End Exit Aircraft Cable Looping Gripper | Material: | Alu+Brass |
|---|---|---|---|
| Cable Construction:: | 7x7 Or 7x19 | Application: | Lighting,hanging |
| MOQ: | 1000pcs | Lead Time: | 7 Days If There Were Enough Material In Stock |
| Sample: | Free Sample (Please Contact Our Customer Service) | ||
| High Light: | Suspension Aircraft Cable Hangers,Double End Exit Cable Looping Gripper,Looping Aircraft Cable Hangers |
||
Product Description
Caddy Aircraft Cable Hangers Wire Rope Suspension Hanging Kit Double End Exit Aircraft Cable Looping Gripper
They are more convenient to install and adjust, without any tools, high breaking loading, and it's also widely used in display, supermart, lighting, false ceiling, acoustic baffles, HAVC Ducting,etc.
Products Description:
Cable looping gripper is a self-locking cable stop that eliminates the need for crimps and swaging tools. The device can also be used to create an adjustable loop in 1/16″ steel cable. This small, compact cable stop and cable adjuster is a reliable solution for suspending items in the ceiling ecosystem, including POP signs, navigation signs, and aisle markers. Constructed of high-grade aluminum, the Cable looping gripper is 100% recyclable. Aluminum is considered a green building material because it can be easily recycled infinite times, at just an energy consumption of 10% of the initial input, without losing any of its properties.
Parameter:
| Cable Diameter | Mini Breaking Load | Save Work Load | Size(L*W*H) |
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | |
| φ5.0mm | 600kg | 120kg |
Double End Exit Aircraft Cable Looping Gripper- Feature:
Grippers offer strength, reliability, adjustability, and can be re-used.

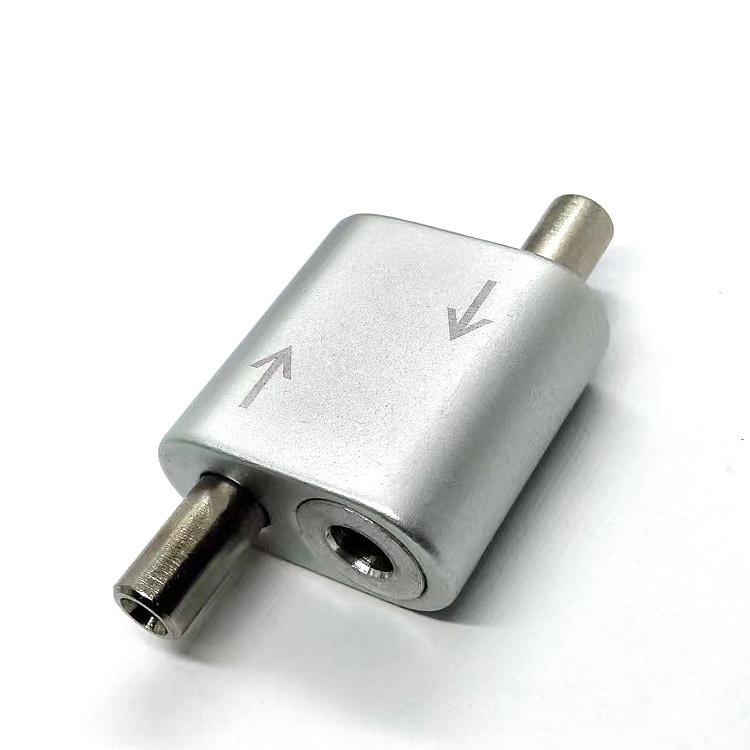

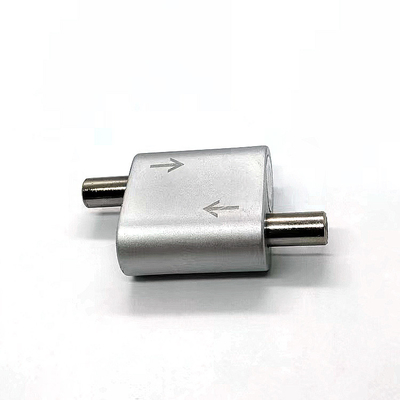

The Looping Gripper is a double-ended gripper with double side cable exits.
This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.
Competitive Advantage:
2. The national patent of our looping gripper products.
3. We have over ten years of experience in suspension applications.
4. Free sample for our customer,but need you pay for the freight.
5. Suspension products and design solution supplied fast and freely.
6. Best design oriented for your special requirements.
7. Lifelong technical support.
8. Professional team support.
9. Standard Design.
10 .Concept proposal.
11. 3D Drawing.
12. Part delivery.
Our service:
2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman, you can totally believe our service.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!
FAQ:
How is the quality of your company controlled? How is the cost controlled?
How do you ship the goods and how long does it take to arrive?
2, Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3, Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
How to deal with the faulty?
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
