High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System

High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System

Product Details:

Place of Origin: Dongguan,China
Brand Name: W-mate
Certification: SGS,RoHS
Model Number: LG22905

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE bag +PP bag + carton (if you have other requirements, please contact us)
Delivery Time: 10-15Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System Material: Alu+Brass
Cable Construction:: 7x7 Or 7x19 Application: Lighting,hanging
MOQ: 1000pcs Lead Time: 7 Days If There Were Enough Material In Stock
Sample: Free Sample (Please Contact Our Customer Service)
High Light:

Bracket Suspension System Griplock Cable Gripper

,

Steel Seismic Cable Gripper

,

Locking Gripper Seismic Bracing Kit

Product Description

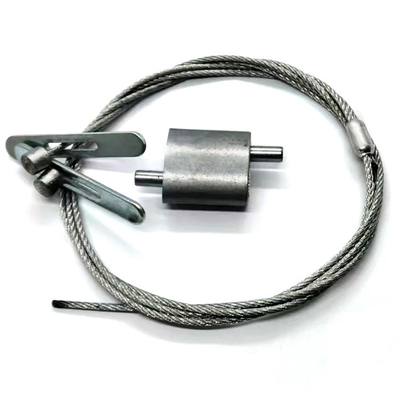

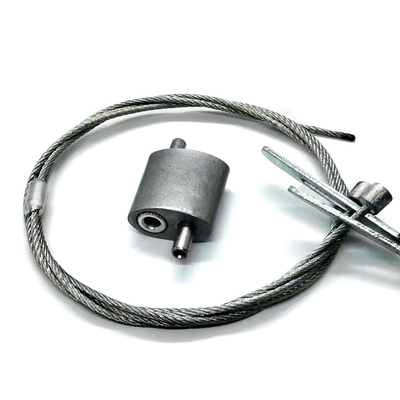

High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System

They are more convenient to install and adjust, without any tools, high breaking loading, and it's also widely used in display, supermart, lighting, false ceiling, acoustic baffles, HAVC Ducting,etc.

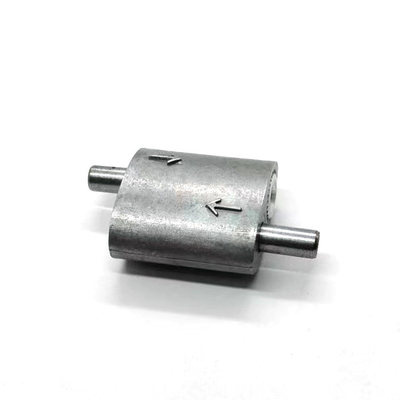

Cable looping gripper is a self-locking cable stop that eliminates the need for crimps and swaging tools. The device can also be used to create an adjustable loop in 1/16″ steel cable. This small, compact cable stop and cable adjuster is a reliable solution for suspending items in the ceiling ecosystem, including POP signs, navigation signs, and aisle markers. Constructed of high-grade aluminum, the Cable looping gripper is 100% recyclable. Aluminum is considered a green building material because it can be easily recycled infinite times, at just an energy consumption of 10% of the initial input, without losing any of its properties.



Parameter:



High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 0



Cable Diameter Mini Breaking Load Save Work Load Size(L*W*H)
φ0.8mm 12.5kg 2.5kg 15*15*8.5
φ1.0mm 50kg 10kg
φ1.2mm 80kg 16kg 20*18*10
φ1.5mm 130kg 26kg
φ1.8mm 180kg 36kg 25*25*12
φ2.0mm 200kg 40kg
φ2.5mm 300kg 60kg 30*30*15
φ3.0mm 400kg 80kg
φ3.5mm 450kg 90kg 42*42*22
φ4.0mm 500kg 100kg
φ5.0mm 600kg 120kg







High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 1

High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 2

High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 3High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 4High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 5







Cable Looping Gripper Seismic Bracing Cable Kit System - Feature:


Using wire rope, you can easily hang objects, permanently or temporarily, with the cable lopping grippers.

Grippers offer strength, reliability, adjustability, and can be re-used.

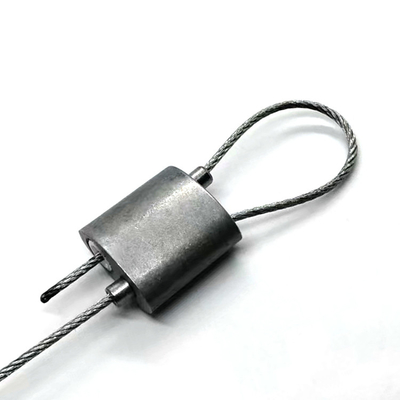

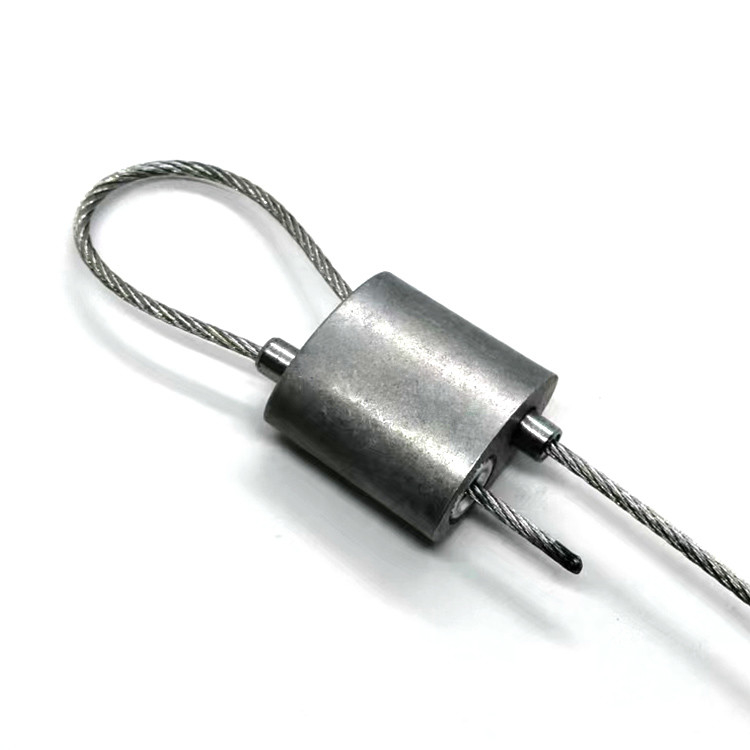

The Looping Gripper is a double-ended gripper with double side cable exits.

This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.




High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 6



Competitive Advantage:



1. We are derict maufacture,can be contrct the quality and price,to sale the high quality and best price forout customers.

2. The national patent of our looping gripper products.

3. We have over ten years of experience in suspension applications.

4. Free sample for our customer,but need you pay for the freight.

5. Suspension products and design solution supplied fast and freely.

6. Best design oriented for your special requirements.

7. Lifelong technical support.

8. Professional team support.

9. Standard Design.

10 .Concept proposal.

11. 3D Drawing.

12. Part delivery.




Our service:



1. We can deliver within short time. Several styles for your choose.

2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.

3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4. All of our products are produced by our professional workman, you can totally believe our service.

High Strength Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System 7



Contact us today for all your cable support needs.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!







FAQ:



How is the quality of your company controlled? How is the cost controlled?



We have four inspections before and after, and we have a complete set of QC inspection processes and solutions.



How do you ship the goods and how long does it take to arrive?



1, By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2, Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3, Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.



How to deal with the faulty?



Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Contact Us:


Susan



Dongguan Wire Rope Mate Hardware Co.,Limited

Add: No.28,Rong Ji Road, Shang Sha Community, Chang An Town, Dongguan City, Guangdong, China.

Post Code:523867

Mobile: +86 18926802440

Wechat: 18874061218

Skype: susanyang8912

WhatsApp:+86 188 7406 1218

Tel: +86 0769-8532 2312 EXT:8008

Fax: +86 0769-8549 3351

E-mail: susan@wireropemate.com

Website: http://www.cablesuspensionkit.com 





Competitive Advantage:



Considerable time and cost savings on your project.
Simplified installation, maintenance, and repair.
Market-leading solutions.
Innovative, patented solutions designed by an in-house team of engineers.
Strong, long-lasting products.
A complete solution for a wide range of applications.



Looping Cable Adjuster - Feature:



Looping gripper hanging signs, lighting, HVAC equipment, acoustical baffles or other articles with its built-in push button locking mechanism which automatically grips steel cable. Installers can create an adjustable loop, easily make height adjustments, or level an installation by simply pressing the button to freely move the cable back and forth. These products are the perfect hardware for installing items including aisle markers, navigational signs, heavier décor items, lighting systems, HVAC equipment, ductwork and acoustic panels. An ideal solution for ceiling signs in retail, manufacturing, office, conference and event environments as well.They are compact, lightweight, reusable and aesthetically pleasing. All models are made from anodized aluminum which protects against corrosion or chrome plated brass & steel.



Company Profile:

Dongguan Wire Rope Mate Hardware Co., Limited

Established in April 10,2009, Dongguan Wire Rope Mate Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of grippers, wire, swivels, rocker arm ,aluminum reflectors, ceiling attachment, suspension kits and assembly tool etc, wildly used in construction industry, lighting, display industry and so on. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We are located in Chang An town, Dong Guan city, with convenient transportation access .Covering an area of more than 3000 square meters, we now have over 150 employees, an annual sales figure that exceeds USD 20 million, and are currently exporting 80% of our production to Europe, USA, Canada, Australia and India etc.
Quality is our life. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our company has passed the ISO9001-2015 quality certification in 2020.We are looking forward to forming successful business relationships with new clients around the world by our excellent quality, reasonable price and best service. Welcome to our company.
