High Pulling Force Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | W-mate |
| Certification: | SGS,RoHS |
| Model Number: | LG1820 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag +PP bag + carton (if you have other requirements, please contact us) |
| Delivery Time: | 10-15Work Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/month |
|
Detail Information |
|||
| Product Name: | Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System | Material: | Alu+Brass |
|---|---|---|---|
| Cable Construction:: | 7x7 Or 7x19 | Application: | Lighting,hanging |
| MOQ: | 1000pcs | Lead Time: | 7 Days If There Were Enough Material In Stock |
| Sample: | Free Sample (Please Contact Our Customer Service) | ||
| High Light: | Seismic Retrofit Bracket Suspension System,Steel Seismic Bracing Kit,Seismic Bracket Wire Locking Cable Gripper |
||
Product Description

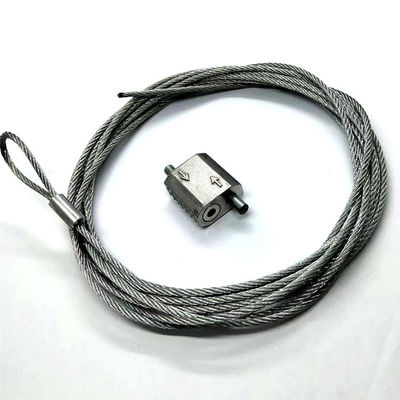

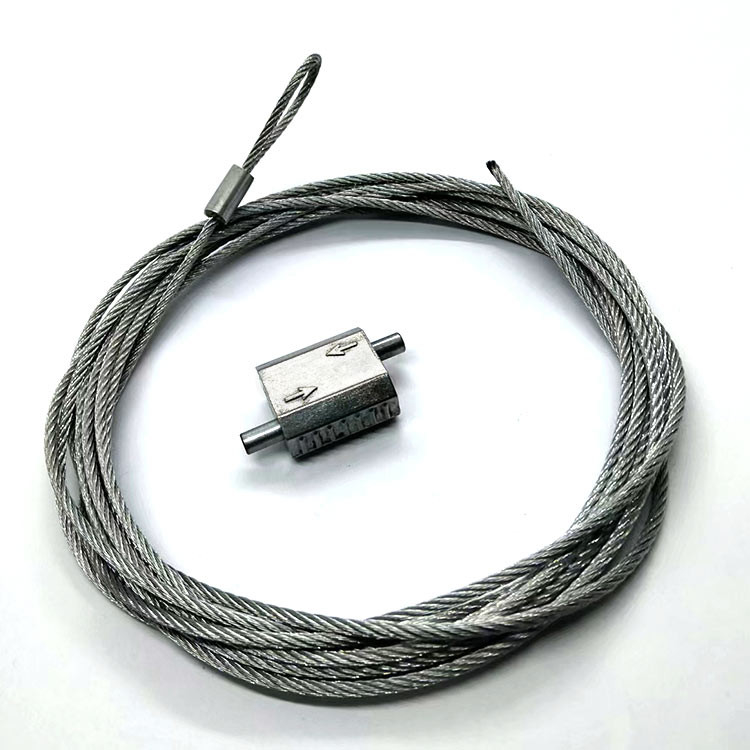

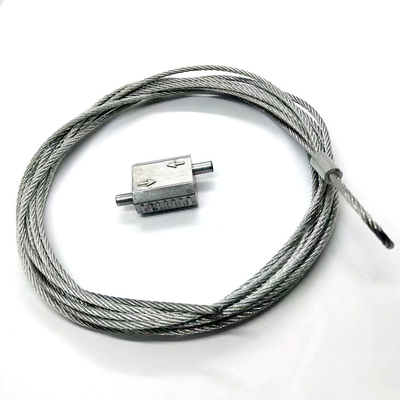

High Pulling Force Wire Locking Cable Gripper Steel Seismic Retrofit Bracket Suspension System
They are more convenient to install and adjust, without any tools, high breaking loading, and it's also widely used in display, supermart, lighting, false ceiling, acoustic baffles, HAVC Ducting,etc.

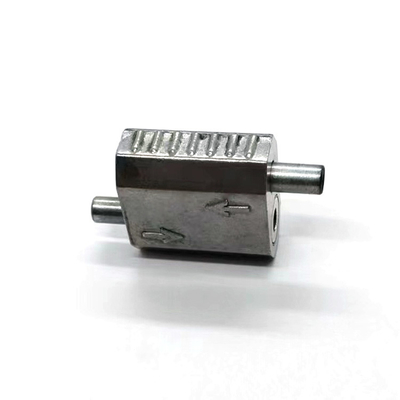

Cable looping gripper is a self-locking cable stop that eliminates the need for crimps and swaging tools. The device can also be used to create an adjustable loop in 1/16″ steel cable. This small, compact cable stop and cable adjuster is a reliable solution for suspending items in the ceiling ecosystem, including POP signs, navigation signs, and aisle markers. Constructed of high-grade aluminum, the Cable looping gripper is 100% recyclable. Aluminum is considered a green building material because it can be easily recycled infinite times, at just an energy consumption of 10% of the initial input, without losing any of its properties.
Parameter:
| Cable Diameter | Mini Breaking Load | Save Work Load | Size(L*W*H) |
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | |
| φ5.0mm | 600kg | 120kg |
Aircraft Wire Cable Stop Clamp Adjuster Gripper Looper - Feature:
Grippers offer strength, reliability, adjustability, and can be re-used.
The Looping Gripper is a double-ended gripper with double side cable exits.
This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.
Competitive Advantage:
2. The national patent of our looping gripper products.
3. We have over ten years of experience in suspension applications.
4. Free sample for our customer,but need you pay for the freight.
5. Suspension products and design solution supplied fast and freely.
6. Best design oriented for your special requirements.
7. Lifelong technical support.
8. Professional team support.
9. Standard Design.
10 .Concept proposal.
11. 3D Drawing.
12. Part delivery.
Our service:
2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman, you can totally believe our service.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!
FAQ:
How is the quality of your company controlled? How is the cost controlled?
How do you ship the goods and how long does it take to arrive?
2, Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3, Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
How to deal with the faulty?
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Susan
Dongguan Wire Rope Mate Hardware Co.,Limited
Add: No.28,Rong Ji Road, Shang Sha Community, Chang An Town, Dongguan City, Guangdong, China.
Post Code:523867
Mobile: +86 18926802440
Wechat: 18874061218
Skype: susanyang8912
WhatsApp:+86 188 7406 1218
Tel: +86 0769-8532 2312 EXT:8008
Fax: +86 0769-8549 3351
E-mail: susan@wireropemate.com
Website: http://www.cablesuspensionkit.com
Our service:
Complete Equipment&Factory Price
We have a whole producing line which includes CNC lathe processing, punching machines, die-casting, Automatic lath, Polisher, Grinder, etc
Our prices are very competitive because we are the manufacturer, and we has the ability to assist customers to develop new products.
More than 10 year of experience
We are specialized in the manufacture of various Hanging System Accessories for many ten years. We have profuse designs with series quality grades.
Our factory strictly implements ISO9001: 2005 international quality system to ensure that provide users with the best quality, service first-class products to meet the various needs of users.
We sincerely and warmly welcome you here to visit, observe, guide, and consult personally at any time.
Best SEVICE
24 hours Customer service online.
We are sure that delivery will be made in conformity with the specified quality, quantity, and time.
Competitive Advantage:
Considerable time and cost savings on your project.
Simplified installation, maintenance, and repair.
Market-leading solutions.
Innovative, patented solutions designed by an in-house team of engineers.
Strong, long-lasting products.
A complete solution for a wide range of applications.
Looping Cable Adjuster - Feature:
Looping gripper hanging signs, lighting, HVAC equipment, acoustical baffles or other articles with its built-in push button locking mechanism which automatically grips steel cable. Installers can create an adjustable loop, easily make height adjustments, or level an installation by simply pressing the button to freely move the cable back and forth. These products are the perfect hardware for installing items including aisle markers, navigational signs, heavier décor items, lighting systems, HVAC equipment, ductwork and acoustic panels. An ideal solution for ceiling signs in retail, manufacturing, office, conference and event environments as well.They are compact, lightweight, reusable and aesthetically pleasing. All models are made from anodized aluminum which protects against corrosion or chrome plated brass & steel.
