Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps

Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps

Product Details:

Place of Origin: Dongguan,China
Brand Name: w-mate
Certification: SGS,RoHS
Model Number: WR202209024

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE bag +PP bag + carton (if you have other requirements, please contact us)
Delivery Time: 10-15Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Cable Clip Wire Rope Clamp Cable Gripper Material: Brass
Cable Construction:: 7x7 Or 7x19 Application: Lighting,hanging
MOQ: 1000pcs Lead Time: 7 Days If There Were Enough Material In Stock
Sample: Free Sample (Please Contact Our Customer Service)
High Light:

Metal Reusable Cable Clamps

,

Sheet Metal Rope Clamp

,

Reusable Stainless Steel Cable Clamp

Product Description

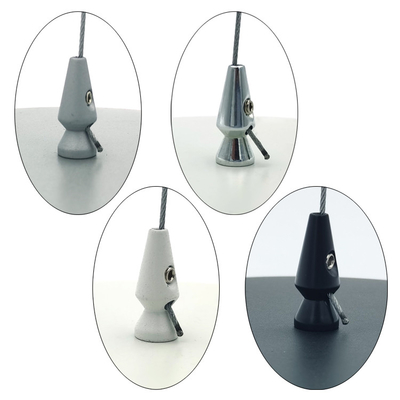

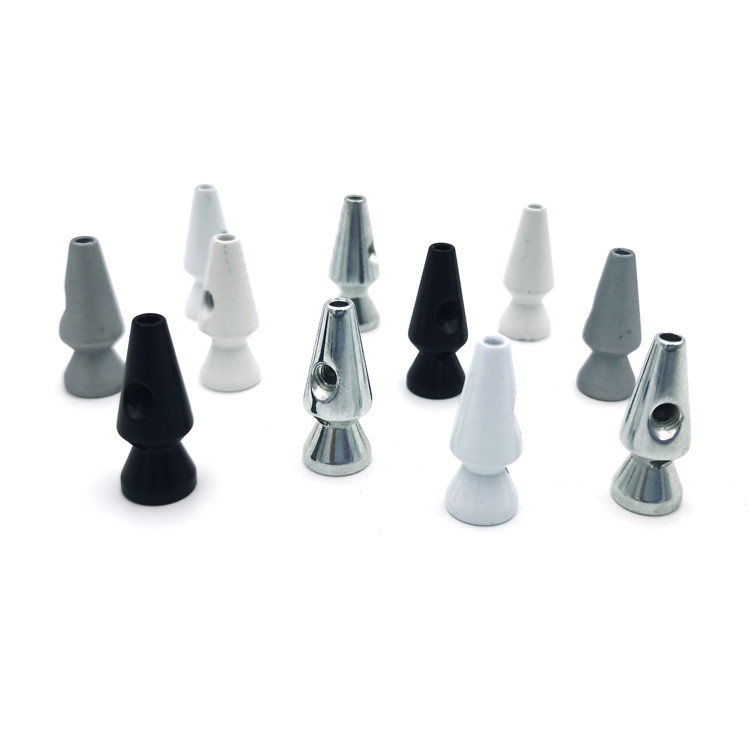

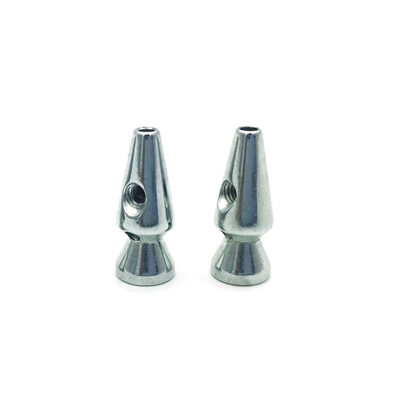

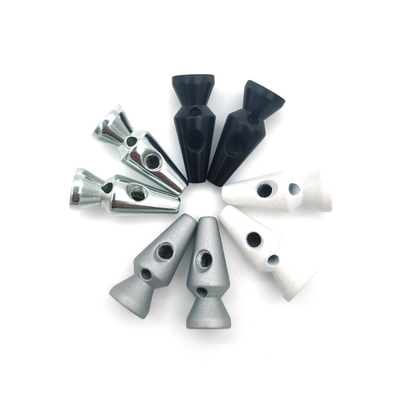

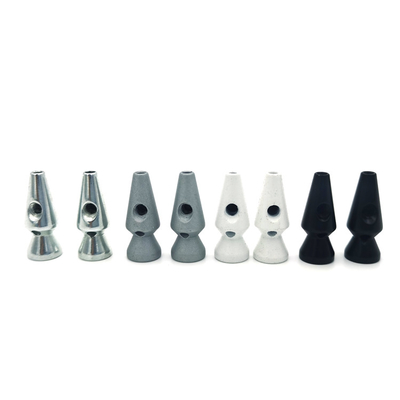

Feature of Cable Clip Wire Rope Clamp Cable Gripper



Cable gripper, (also called cable slider or cable fastener):
Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body:
holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
2) Locking spheres:
3 sphere arranged in a triangular pattern that will hold the cable in place via pressure.
3) Wedge or bush:
Transfers the pressure of the spring to the spheres.
4) Spring:
Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
5) Lid:
To close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.



Technical Parameters of Cable Clip Wire Rope Clamp Cable Gripper



Product name adjustable cable gripper
Material brass
Application Hanging Lights;LED panel lights ect.
Suit for cable diameter fit for 0.6mm~2.0mm steel wire
Delivery time 5~7 days
Sample free sample
Surface treatment plated-Nickel
MOQ 100pcs



Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps 0Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps 1Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps 2Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps 3Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps 4Stainless Steel Cable Clamp Sheet Metal Rope Clamp Reusable Cable Clamps 5



Advantages of Cable Clip Wire Rope Clamp Cable Gripper



Complete Equipment&Factory Price
We have a whole producing line which includes CNC lathe processing, punching machines, die-casting, Automatic lath, Polisher, Grinder, etc
Our prices are very competitive because we are the manufacturer, and we has the ability to assist customers to develop new products.

More than 10 year of experience
We are specialized in the manufacture of various Hanging System Accessories for many ten years. We have profuse designs with series quality grades.
Our factory strictly implements ISO9001: 2005 international quality system to ensure that provide users with the best quality, service first-class products to meet the various needs of users.
We sincerely and warmly welcome you here to visit, observe, guide, and consult personally at any time.

Best SEVICE
24 hours Customer service online.
We are sure that delivery will be made in conformity with the specified quality, quantity, and time.



About the application of Cable Clip Wire Rope Clamp Cable Gripper

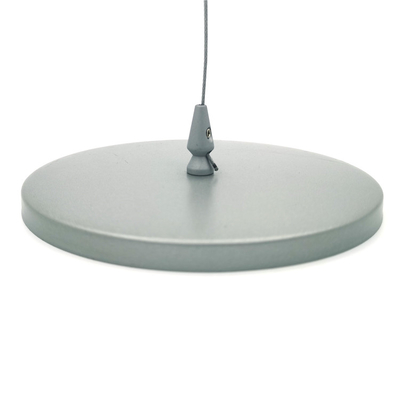

Suspension Kits with adjustable cable grippers are the perfect alternative to the traditional threaded rod solution, they are used extensively throughout the building, architectural, lighting, and agricultural sectors.

With our many Cable Gripper styles you can hang anything: Drop Ceilings, Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames, and more.



Custom order information of Cable Clip Wire Rope Clamp Cable Gripper



To start your order first, carefully review the product and service information on our drawing and quotation, if you don't see exactly what you want, please contact us regarding availability, size, and quantity requirements for your project. Make sure you have decided on exactly what you need.
Then, consult us on all your questions regarding
our products, components, and parts, because many of the components can be easily confused.
Contact us to receive a quote for your project.
After placing an order, the customer receives via fax or e-mail a Customer Order Acknowledgment, which indicates in detail descriptions of items and pricing. Orders will not be processed without WIRE ROPE MATE HARDWARE receiving a signed copy of said Customer Order Acknowledgment. Make sure to review and initial all areas. All changes to your orders of stock merchandise can be modified no later than 24 hours after receiving your order. We will call or fax you immediately should something change concerning your order.



Packaging Information of Cable Clip Wire Rope Clamp Cable Gripper



500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.



International Shipping Around the World



All the Cable Clip Wire Rope Clamp Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.



FAQ:



What's the lead time?



Lead times will vary depending on the items and quantities on order. Normal lead times are 2-5 business days for stocked items. Please check with the Sales Team.



Do you accept customized order?



Yes, welcome to give us your design for reference, then we can discuss details accordingly.



How do you ship the goods and how long does it take to arrive?



We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
