Duct Trapeze Supportage Fixation Hanging Kit Wire Gripper Loop End

Product Description

Duct Trapeze Supportage Fixation Hanging Kit Wire Gripper Loop End

They are more convenient to install and adjust, without any tools, high breaking loading, and it's also widely used in display, supermart, lighting, false ceiling, acoustic baffles, HAVC Ducting,etc.

Product Quick Details:

This track suspension kit uses the Metal Ceiling Twinst Stud to connect the track sliders. It is convenient and fast. The wire rope can be hung on the columnar object. With the connection of the locker, the adjustment is simpler and can be adjusted without tools. height.
This suspension kit is suitable for items that require moving suspension, such as spotlights, hangtags, billboards, etc.

Package Included:

1, Ceiling Attachment

Material: Brass Gripper+Steel Plate in Nickel finishing color

Size: Φ10*34MM



2, Cable Gripper With Security at top

Material: Brass plated in Nickel

Size: Φ9*26MM



3, 304 Stainless Steel Wire:

Size:Φ1.5*1000MM



Product Specification:



1. Material:

Brass+Stainless Steel Wire



2. Size:

Same as the drawing



3. Cable Diameter and Length:

Ø1.5*1000mm;Or Customize



4. Finishing Color:

Nickel/Chrome



5. Application:

Our wire hanging display fittings are used for lighting systems,shopfitting, visual merchandising, art galleries, suspending cable trays and other mechanical and electrical services.



6. Safe Working Load:

30KG



7. Content:

* Adjustable Center Cable Gripper,adjust the main cable length;

* Brass made Ceiling Attachment ,fixed to the ceiling;

* Stainless Steel wire with loop end;

* Hooks,clip to the LED Panels



8. Advantages:

· Flexible suspension kits

· Simple and effective method of changing luminaire height and levelling

· Complete assembly is available from one source

· Long-lasting quality

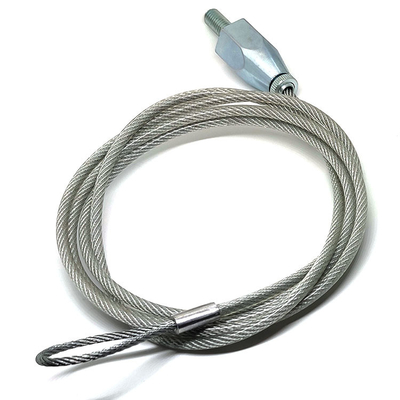

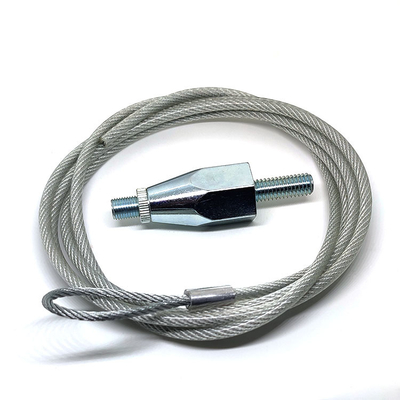

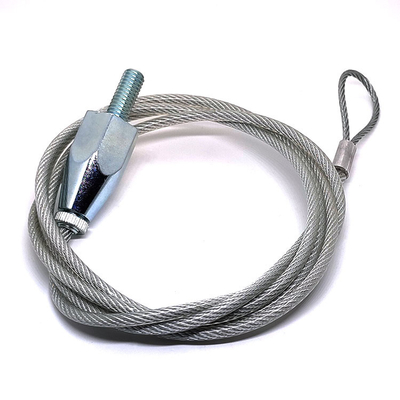

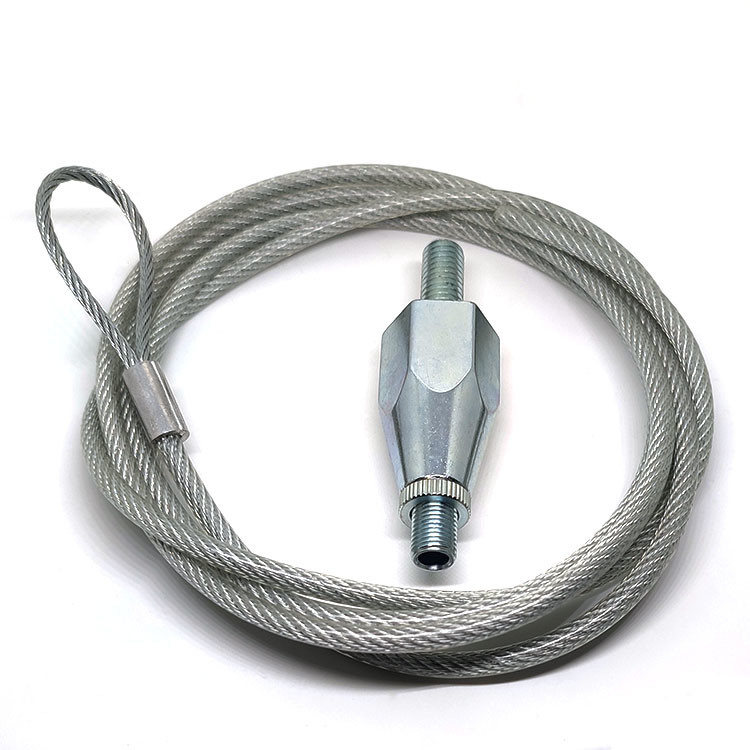

Product Pictures:

Product selling point:

Adjustable cables or fittings which provide for fine height adjustment are an essential feature of picture hanging systems or any poster hanging kit. Signs must be displayed dead level and poster hanging arrays must be perfectly aligned. An adjustable hook at the bottom of the wire or a cable

holder incorporating a clutch mechanism mounted on the ceiling is a vital element of any hanging system.



WARNINGS:

* Not suitable for outdoor use;
* We recommend that a minumum of two suspensions
are used per suspended object;
* Maximum Load Capacity at vertical:30KG;
* The ceiling attachment must be installed by a qualified
fitter,into a reliable substrate to achieve the working load;
* It is essential to remove or support the load before any adjustment is made;
* Ensure the steel wire clearly exits the gripper.

Our advantage:

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile test at the factory to ensure the quality and safety of the products.

Wire Rope Mate specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.
