Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System

Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System

Product Details:

Place of Origin: Dongguan,China
Brand Name: w-mate
Certification: SGS
Model Number: WHS-120

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE bag +PP bag + carton (if you have other requirements, please contact us)
Delivery Time: 10-15Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Get Best Price Contact Now

Detail Information
Product Name: Acoustic Panels String Light Hanging Material: Brass+steel
Sample: Free Sample Steel Wire Construction: 7x7
Color: Original Metal Color Installation Mode: DIY
High Light:

Ceiling Light Adjustable Cable Gripper

,

Adjustable Suspension Cable Gripper

,

Hook Adjustable Cable Gripper

Product Description

Ceiling Hanger Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System



Product Quick Details:

The suspension kit is very convenient for hanging sound-absorbing panels. It is free to adjust the height of the rope without tools. It is convenient and safe. It is the preferred tool for hanging materials such as building decoration materials.



Products Description:

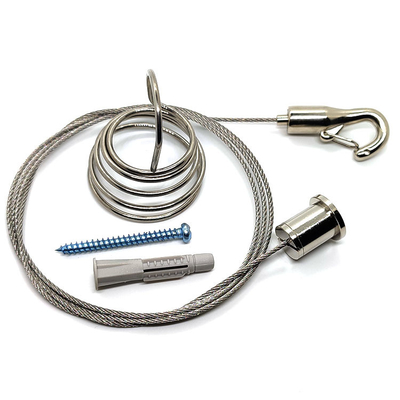

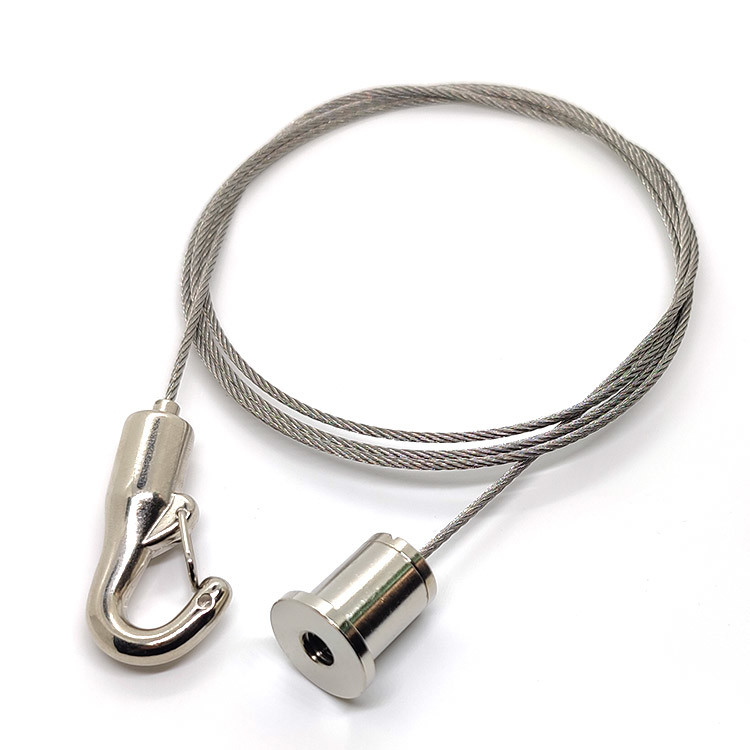

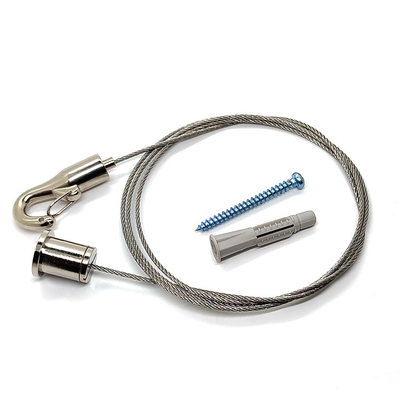

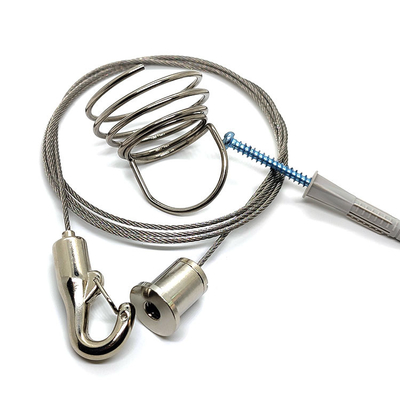

Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 0Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 1Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 2Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 3Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 4Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 5Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 6

Spring anchors    Ceiling attachment Wire rope With screw
Diameter:22MM Length:48MM 16*17MM 1.5*1500MM and plastic anchor





Technical parameter:

Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 7





Product features:


1. Screw ceiling anchor with wire


Two-part screw-on ceiling anchor with drop wire,Thimble size bullet fitting nickel finish,Ideal fixing for ceiling panels and lighting.
Ceiling anchors for attaching drop wires to plaster ceilings are neat,quick to install and supplied at low cost.
Suspended services in buildings such as acoustic panels, light fittings etc require rapid and reliable fixing systems combined with support wires. For lightweight building services applications 1.5mm wire cable can be relied upon to carry loads in excess of 10 kg per suspension point. These slender cables are both economical and unobtrusive.

Screw ceiling anchor for conventional ceilings.
For plasterboard and similar conventional ceilings which will accept a plug and screw fixing,the two-part ceiling anchor is screwed to the ceiling capturing the supplied 1m or 2m length of wire.

2. Suspension hooks self locking

Suspension hooks with self locking facility a ideal for rapid.

Installation and levelling up on site.
Slide the hook up a support wire (1.5mm dia) and it locks fast wherever it is placed.
To lower simply depress the quick release button as shown on the image. The clutch mechanism is released until the suspended item is at exactly the right height. Excess wire can then be snipped off.It is much easier to level up acoustic panels, light fittings and ceiling hung building services when the adjustment can be performed at the suspension point rather than at the ceiling.

The safe Hook has a spring catch across the mouth of the hook to prevent accidental detachment.

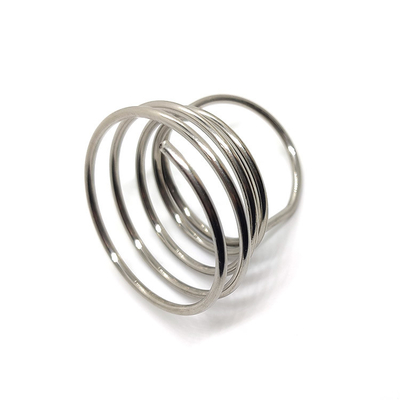

3. Suspension fitting for rockwool acoustic panels

This is a Spiral corkscrew type panel hanger for acoustic panels - Ecophon type panels ,
Economic alternative to Ecophon panel fixings.

Spiral anchors provide a convenient suspension point for certain types of acoustic,ceiling panels made from rockwool which will accept a screw-in corkscrew type fitment.
Acoustic ceiling installers fitting suspended acoustic panels often search for lower,cost installation components.



The spiral anchor and our associated fittings have proved a successful alternative to the manufacturers' own branded components offering significant savings.

Spiral anchor suspension fittings can be used in conjunction with our ceiling fixings,suspension cables and adjustable suspension hooks to create a low cost solution.



Our advantage:

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile test at the factory to ensure the quality and safety of the products.

Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 8

Wire Rope Mate specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.

Ceiling Light Suspension Cable Wire Rope Adjustable Length With Spring Hook Acoustic Panel System 9





Customer Service:

1, 24-hour on line service.

2, Excellent service and professional solution.

3, Prompt Delivery.

4, Special benefit for long term business customers.



Company Profile:

Dongguan Wire Rope Mate Hardware Co., LimitedEstablished in April 10,2009, Dongguan Wire Rope Mate Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of grippers, wire, swivels, rocker arm ,aluminum reflectors, ceiling attachment, suspension kits and assembly tool etc, wildly used in construction industry, lighting, display industry and so on. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We are located in Chang An town, Dong Guan city, with convenient transportation access .Covering an area of more than 3000 square meters, we now have over 150 employees, an annual sales figure that exceeds USD 20 million, and are currently exporting 80% of our production to Europe, USA, Canada, Australia and India etc.
Quality is our life. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our company has passed the ISO9001-2015 quality certification in 2020.We are looking forward to forming successful business relationships with new clients around the world by our excellent quality, reasonable price and best service. Welcome to our company.
