Aircraft Adjustable Tension Cable Gripper For Sign

Aircraft Adjustable Tension Cable Gripper For Sign

Product Details:

Place of Origin: Dongguan,China
Brand Name: w-mate
Certification: SGS,RoHS
Model Number: WR2022052715

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE bag +PP bag + carton (if you have other requirements, please contact us)
Delivery Time: 10-15Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Aircraft Cable Gripper Material: Brass
Cable Construction:: 7x7 Or 7x19 Application: Lighting,hanging
MOQ: 1000pcs Lead Time: 7 Days If There Were Enough Material In Stock
Sample: Free Sample (Please Contact Our Customer Service)
High Light:

Tension Adjustable Cable Gripper

,

Brass Hanging Adjustable Cable Gripper

,

Sign Aircraft Cable Gripper

Product Description



Detailed Information



Feature Of aircraft cable gripper



aircraft cable gripper, (also called cable slider or cable fastener):
Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body:
holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
2) Locking spheres:
3 sphere arranged in a triangular pattern that will hold the cable in place via pressure.
3) Wedge or bush:
Transfers the pressure of the spring to the spheres.
4) Spring:
Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
5) Lid:
To close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.



Technical Parameters of aircraft cable gripper



Product name aircraft cable gripper
Material Brass
Thread Size None
Cable Exit Side Exit
Surface Treatment 7x7 or 1x23
Suit For Cable Diameter Fit for 1.0mm,1.2mm,1.5mm cable or other
Weight Load 20-100kg
Application For Sign
Delivery Time 7 days after receive 30% down payment
Sample Free Sample Available
MOQ 1000pcs
Certification SGS-RoHS

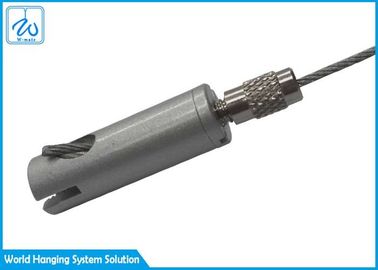

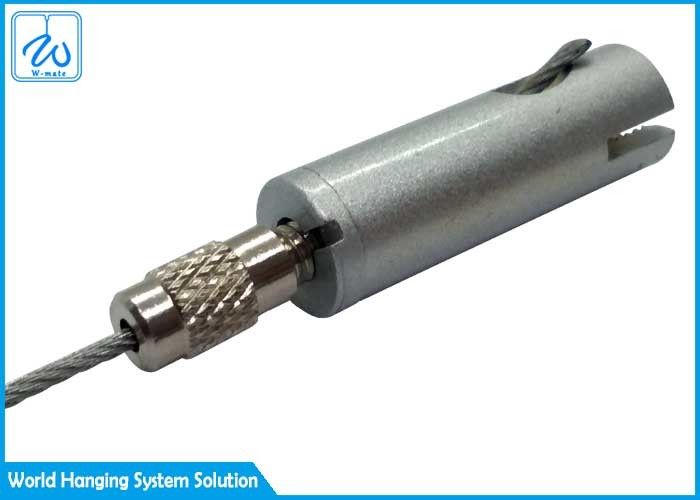

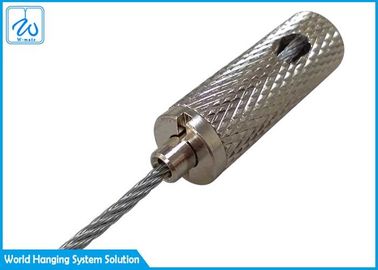

Aircraft Adjustable Tension Cable Gripper For Sign 0Aircraft Adjustable Tension Cable Gripper For Sign 1Aircraft Adjustable Tension Cable Gripper For Sign 2

Advantages of aircraft cable gripper



1. Easy to assemble:
Our cable gripper has automatic locking wire rope, which is very convenient for installation. The connecting parts can be simply assembled by bolts, and the bolts can only be loosened when you can disassemble them.
2. Reusability:
Compared with other metals, copper or aluminum has the advantage of reusability.
So when we dispose of it, it's easy to recycle, and it's easier to disassemble and assemble, so it can form a ministry product recycling system.
3. lightweight:
It is made of copper, iron, or aluminum alloy, so it is very light and convenient for transportation after assembly.
4. Artistry:
Due to the coating treatment of the formed surface, the occurrence of oxidation is reduced, corrosion resistance, scratch is not easy to form on the surface, and good glossiness is maintained at the same time.



Custom order information of aircraft cable gripper



Diameter:regular or customized
Thread Size:Regular or customized
Surface Treatment:Plating Chrome or Nickel
Color:Customized
Packaging Logo:Regular or customized
Delivery time (first delivery):3-7 working days for sample orders, 15-25 days for bulk orders
Payment method:T/T is 30%-70%
Payment methods:T/T, PayPal, etc.
Shipping port: FOB Shenzhen or FOB Shanghai
Minimum order quantity:1000pcs





Customers who bought aircraft cable gripper also bought



Aircraft Adjustable Tension Cable Gripper For Sign 3 Aircraft Adjustable Tension Cable Gripper For Sign 4 Aircraft Adjustable Tension Cable Gripper For Sign 5 Aircraft Adjustable Tension Cable Gripper For Sign 6
Aircraft Cable Suspension Systems Gripper Seismic Bracing Kit Wire Rope With Paddle Ends T Bar Clips





Packaging Information



500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.



International Shipping Around the World



All the Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.



Aircraft Adjustable Tension Cable Gripper For Sign 7



FAQ:



Is it true that the cable gripper can be used to lock the wire rope without tools?



Yes, our cable gripper can be locked automatically as long as the wire rope is threaded in, without tools.



How much weight can the cable gripper lift?



The breaking load depends on the diameter of the cable.



What type of cable do I need?



The cable has to be 7x7 or 7x19 stranded aircraft cable in stainless or galvanized steel. Cables should have factory installed terminals (stop-sleeves). The cable diameter depends of the weight of the fixture. Check the Weight Load Guidelines to determine Gripper and cable combinations.
