Steel Rope For Lighting Flexible Stainless Steel Wire Rope Rod With Eyelet
Product Details:
| Place of Origin: | Dongguan,China |
| Brand Name: | W-mate |
| Certification: | SGS |
| Model Number: | WR22012007 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag +PP bag + carton (if you have other requirements, please contact us) |
| Delivery Time: | 10-15Work Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/month |
|
Detail Information |
|||
| Product Name: | Wire Rope Stamped Eyelet | Material: | Steel |
|---|---|---|---|
| Cable Construction:: | 7x7 Or 7x19 | Application: | For Suspension System |
| MOQ: | 1000pcs | Lead Time: | 7 Days If There Were Enough Material In Stock |
| High Light: | Lighting Flexible Wire Rope Assembly,Stainless Steel Wire Rope Assembly,Stamped Eyelet Wire Rope Assembly |
||
Product Description

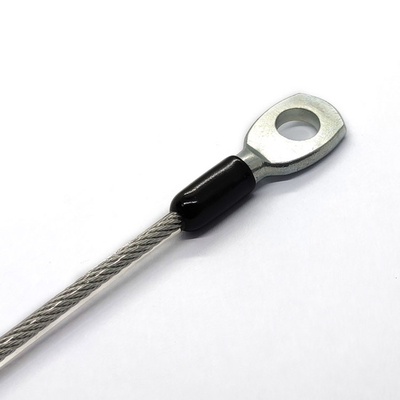

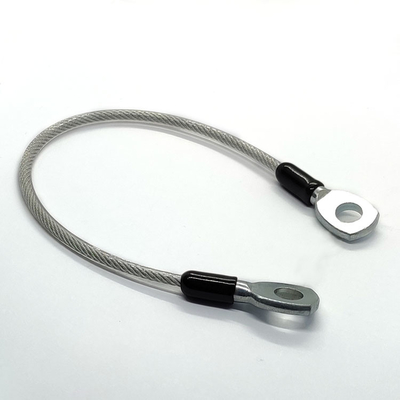

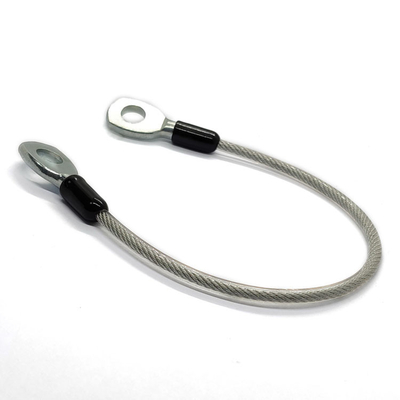

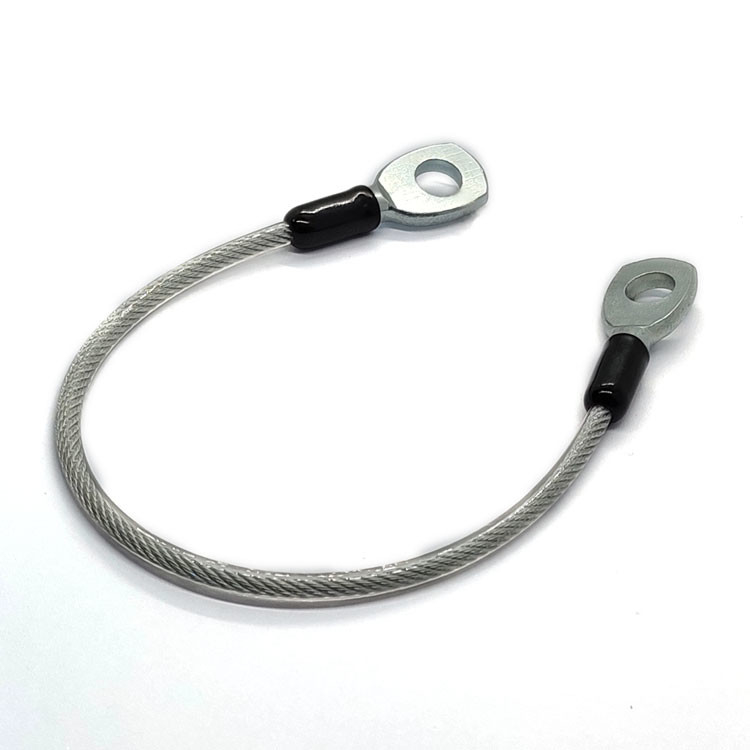

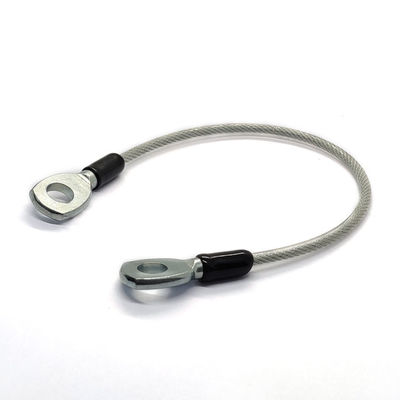

Steel Rope For Lighting Flexible Stainless Steel Wire Rope Rod With Eyelet
Detailed Information
Feature Of wire rope stamped eyelet
When in use, just press the button on the top of the holder to pass the cable through the holder,Release the button when the required length is reached.
The wire rope can be locked.
To adjust, press the button to move the wire rope.
If you need customized products, please contact our customer service.
Can design professional suspension scheme for you!
Technical Parameters of wire rope stamped eyelet
| Product name | wire rope stamped eyelet |
| Material | Stainless Steel |
| Diameter | 0.8-1.5mm |
| Steel wire length | 1.5m /Customized as require |
| Nylon coating | No Coating |
| End part | sockets ,Eye,turnbuckels,loop,stainless terminals |
| Application | fall protection lanyards may be used for rigging and other applications |
| Delivery Time | 7 days after receive 30% down payment |
| Sample | Free Sample Available |
| MOQ | 1000pcs |
| Certification | SGS-RoHS |
Advantages of wire rope stamped eyelet
Wire rope slings are extremely strong and an excellent choice for heavy duty jobs involving not only lifting, but also hoisting, towing, or anchoring loads.
The fabrication of wire slings also offers excellent abrasion-resistance and heat resistance so it can be used in extreme conditions and temperatures.
Its pliable design can conform to the shape of a load for a more secure application.
Each steel wire rope configuration will offer different benefits and will be better suited to certain applications.
In general, a smaller number of large outer wires offers better wear and corrosion resistance, while a larger number of small wires provides a better level of flexibility and fatigue resistance.
Custom order information of wire rope stamped eyelet
Diameter:regular or customized
Thread Size:Regular or customized
Surface Treatment:Plating Chrome or Nickel
Color:Customized
Packaging Logo:Regular or customized
Delivery time (first delivery):3-7 working days for sample orders, 15-25 days for bulk orders
Payment method:T/T is 30%-70%
Payment methods:T/T, PayPal, etc.
Shipping port: FOB Shenzhen or FOB Shanghai
Minimum order quantity:1000pcs
Customers who bought wire rope stamped eyelet also bought
 |
|
|
|
| Wire Rope Assembly With Bent Terminals | Steel Wire Rope by Eyelets | Light Fitting Wire Suspension kit | Wire Rope Sling |
Packaging Information
500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.
International Shipping Around the World
All the Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
FAQ:
Can your company coat the wires in plastic?
We can coat the wire in transparent/black PVC/PA.
What is the pulling force of a wire rope with a diameter of 1.5mm?
The pulling force of s wire rope with a diameter of 1.5mm is 80KG, the safety load is 16KG.
What' s the difference between galvanized and stainless cable?
Both Stainless Steel and Galvanized Aircraft Cable have approximately the same break strength. Galvanized cable is less expensive and is used in 90% of all lighting applications.
