• Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast
  • Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast

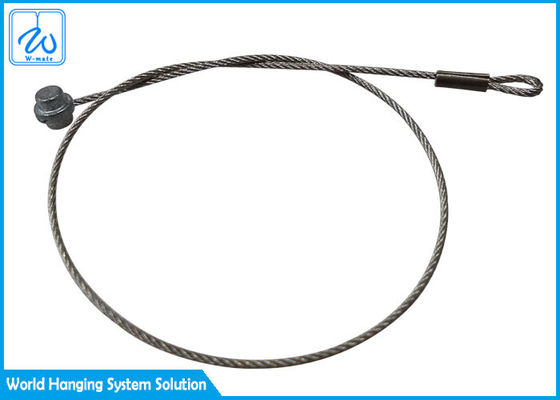

Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast

Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast

Product Details:

Place of Origin: Dongguan,China
Brand Name: w-mate
Certification: SGS
Model Number: WR21042303

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE bag +PP bag + carton (if you have other requirements, please contact us)
Delivery Time: 10-15Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Wire Lifting Slings With Ball Material: Steel
Cable Construction:: 7x7 Or 7x19 Application: For Suspension System
MOQ: 1000pcs Lead Time: 7 Days If There Were Enough Material In Stock
High Light:

Steel Die Cast Wire Rope Sling

,

SGS Stainless Steel Wire Lifting Slings

,

7x19 Wire Lifting Slings

Product Description



Detailed Information



Feature Of Wire Lifting Slings With Ball



Wire Lifting Slings With Ball, (also called cable slider or cable fastener):
Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body:
holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
2) Locking spheres:
3 sphere arranged in a triangular pattern that will hold the cable in place via pressure.
3) Wedge or bush:
Transfers the pressure of the spring to the spheres.
4) Spring:
Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
5) Lid:
To close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.



Technical Parameters of Wire Lifting Slings With Ball



Product name Wire Lifting Slings With Ball
Material Stainless Steel
Diameter 1.0mm
Steel wire length 1.5m /Customized as require
Nylon coating No
End part ball
Application latch lanyard, support lanyard, door restraint
Delivery Time 7 days after receive 30% down payment
Sample Free Sample Available
MOQ 1000pcs
Certification SGS-RoHS



Advantages of Wire Lifting Slings With Ball



We have production workshop to process wire sling!

These single leg wire rope slings have standard size swaged eyes at both ends and can be ordered with light vinyl or heavy aluminum load tags.

We offer these predetermined lengths, or you can order custom lengths specially.

We can also add thimbles, hooks or other accessories as needed.



Custom order information of Wire Lifting Slings With Ball



Diameter:regular or customized
Thread Size:Regular or customized
Surface Treatment:Plating Chrome or Nickel
Color:Customized
Packaging Logo:Regular or customized
Delivery time (first delivery):3-7 working days for sample orders, 15-25 days for bulk orders
Payment method:T/T is 30%-70%
Payment methods:T/T, PayPal, etc.
Shipping port: FOB Shenzhen or FOB Shanghai
Minimum order quantity:1000pcs





Customers who bought Wire Lifting Slings With Ball also bought



Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast 0 Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast 1 Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast 2 Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast 3
Twist Clips Steel Light Fixtures Display Clamps Cable Hanging Kit Cable Slings With Eyelets Steel Wire Rope by Eyelets





Packaging Information



500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.



International Shipping Around the World



All the Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.



Stainless Steel Wire Lifting Slings With Ball Stop By Die Cast 4



FAQ:



What' s the difference between galvanized and stainless cable?



Both Stainless Steel and Galvanized Aircraft Cable have approximately the same break strength. Galvanized cable is less expensive and is used in 90% of all lighting applications.



What is the difference between steel wire rope and plastic coated wire rope?



The breaking load of the plastic coated wire rope is smaller than that of the steel wire rope. The corrosion resistance of PA coated wire rope will be better.



Would it be possible to buy the roll of wire of you?



We can supply the roll or wire, we have diameter 0.8,1.0,1.5,2.0,2.5 mm wire etc.
