LED Aluminum Channel Wire Gripper Suspension Kit With Mounting Clips
Product Details:
Place of Origin: | Dongguan,China |
Brand Name: | w-mate |
Certification: | SGS,RoHS |
Model Number: | WR2022052712 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000pcs |
---|---|
Price: | Negotiation |
Packaging Details: | PE bag +PP bag + carton (if you have other requirements, please contact us) |
Delivery Time: | 10-15Work Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100,000pcs/month |
Detail Information |
|||
Product Name: | Lighting Suspension Kit With Mounting Clips | Material: | Brass |
---|---|---|---|
Cable Construction:: | 7x7 Or 7x19 | Application: | Lighting,hanging |
MOQ: | 1000pcs | Lead Time: | 7 Days If There Were Enough Material In Stock |
Sample: | Free Sample (Please Contact Our Customer Service) | ||
High Light: | Hanging Cable Wire Gripper,Clip Cable Wire Gripper,Aluminum Channel Suspension Cable Gripper |
Product Description
Feature of Lighting Suspension Kit with Mounting Clips

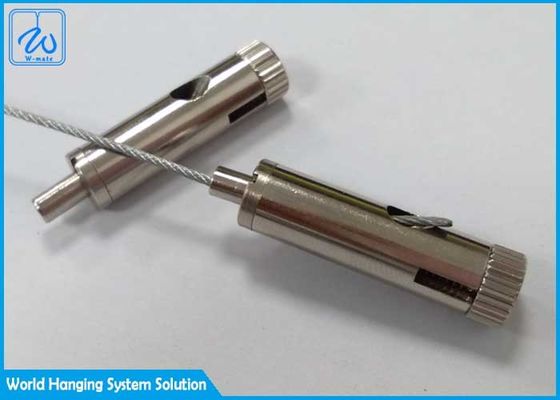

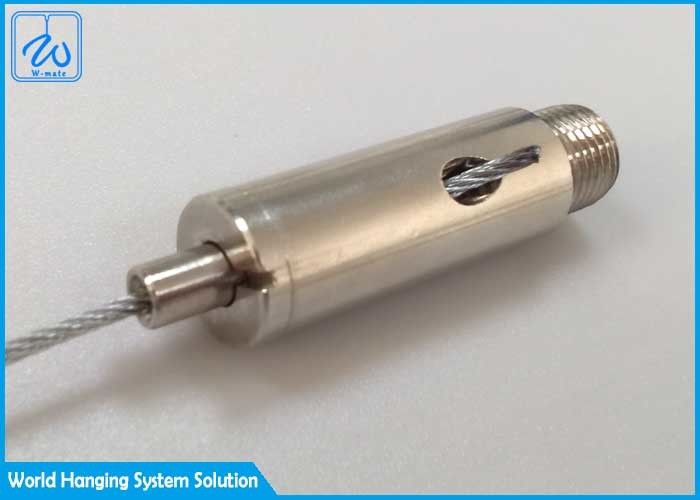

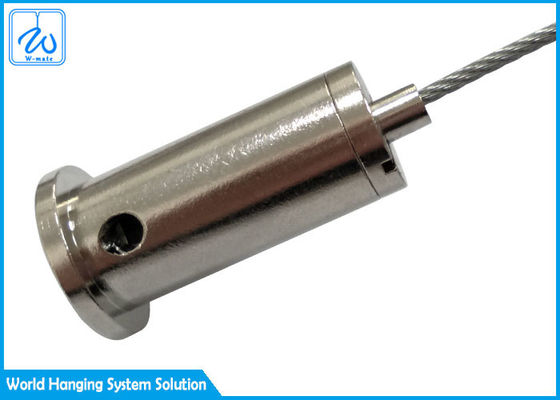

Cable gripper, (also called cable slider or cable fastener):
Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body:
holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
2) Locking spheres:
3 sphere arranged in a triangular pattern that will hold the cable in place via pressure.
3) Wedge or bush:
Transfers the pressure of the spring to the spheres.
4) Spring:
Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
5) Lid:
To close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.
Technical Parameters of Lighting Suspension Kit with Mounting Clips
Product name | adjustable cable gripper |
Material | brass |
Application | Hanging Lights;LED panel lights ect. |
Suit for cable diameter | fit for 0.6mm~2.0mm steel wire |
Delivery time | 5~7 days |
Sample | free sample |
Surface treatment | plated-Nickel |
MOQ | 100pcs |
Advantages of Lighting Suspension Kit with Mounting Clips
Advantages
1.Aesthetically appealing and easy to handle.
Cost-effective installation.
Higher minimum breaking loads compared to teeth mechanism
2.Saves time in installation/alignment unlike traditional threaded rods/angles
Built-in pin for toolless adjustments.
3.Through a hole on all three models to make figure "8" double-loop assembly.
Tested for 5:1 load safety factor
About the application of Lighting Suspension Kit with Mounting Clips
Suspension Kits with adjustable cable grippers are the perfect alternative to the traditional threaded rod solution, they are used extensively throughout the building, architectural, lighting, and agricultural sectors.
With our many Cable Gripper styles you can hang anything: Drop Ceilings, Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames, and more.
Custom order information of Lighting Suspension Kit with Mounting Clips
Diameter:regular or customized
Thread Size:Regular or customized
Surface Treatment:Plating Chrome or Nickel
Color:Customized
Packaging Logo:Regular or customized
Delivery time (first delivery):3-7 working days for sample orders, 15-25 days for bulk orders
Payment method:T/T is 30%-70%
Payment methods:T/T, PayPal, etc.
Shipping port: FOB Shenzhen or FOB Shanghai
Minimum order quantity:1000pcs
Packaging Information of Lighting Suspension Kit with Mounting Clips
500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.
International Shipping Around the World
All the Lighting Suspension Kit with Mounting Clips can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
FAQ:
How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.
Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of wire assemblies with 12 years producing experience in China .We have always been cooperating with domestic and overseas customers and partners with the first- class quality and service to make great achievements.
If this is your first time to contact us, please trust us, we’ll not let you down.
Is it true that the cable gripper can be used to lock the wire rope without tools?
Yes, our cable gripper can be locked automatically as long as the wire rope is threaded in, without tools.
