Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips

Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips

Product Details:

Place of Origin: Dongguan,China
Brand Name: w-mate
Certification: SGS,RoHS
Model Number: WR22011101

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: PE bag +PP bag + carton (if you have other requirements, please contact us)
Delivery Time: 10-15Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Get Best Price Contact Now

Detail Information

Product Name: Cable Loop Termination Kits Material: Brass
Cable Construction:: 7x7 Or 7x19 Application: Lighting,hanging
MOQ: 1000pcs Lead Time: 7 Days If There Were Enough Material In Stock
Sample: Free Sample (Please Contact Our Customer Service)
High Light:

Double Loop Steel Cable Gripper

,

Double Loop Steel Cable Trapeze Clamp

,

Adjustable Cable Gripper Clips

Product Description

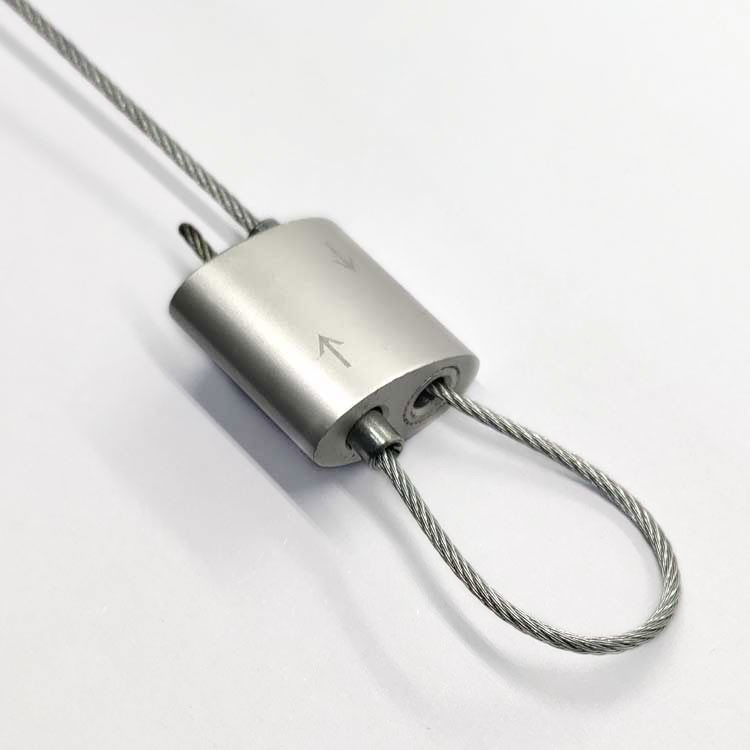

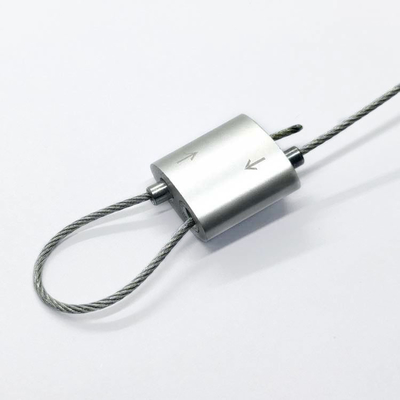

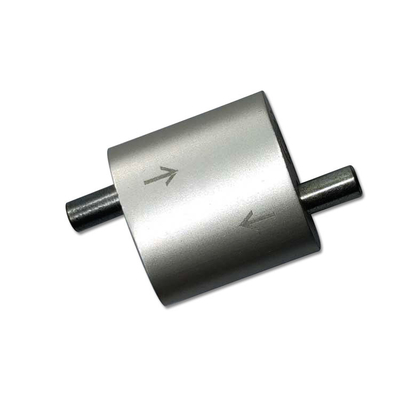

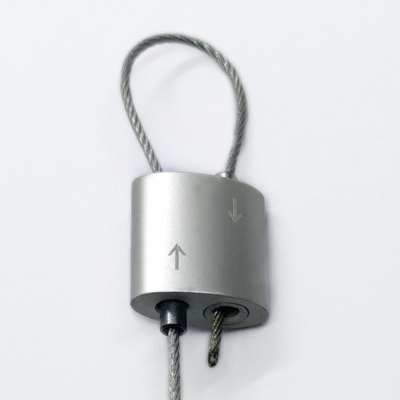

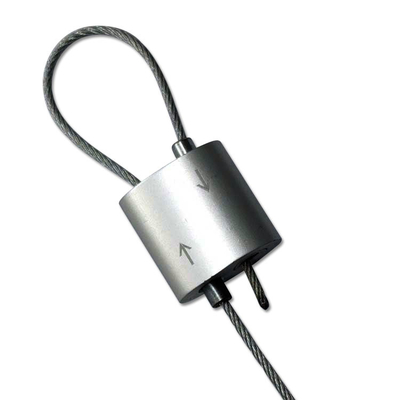

Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips

They are more convenient to install and adjust, without any tools, high breaking loading, and it's also widely used in display, supermart, lighting, false ceiling, acoustic baffles, HAVC Ducting,etc.




Cable looping gripper is a self-locking cable stop that eliminates the need for crimps and swaging tools. The device can also be used to create an adjustable loop in 1/16″ steel cable. This small, compact cable stop and cable adjuster is a reliable solution for suspending items in the ceiling ecosystem, including POP signs, navigation signs, and aisle markers. Constructed of high-grade aluminum, the Cable looping gripper is 100% recyclable. Aluminum is considered a green building material because it can be easily recycled infinite times, at just an energy consumption of 10% of the initial input, without losing any of its properties.



Parameter:



Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 0



Cable Diameter Mini Breaking Load Save Work Load Size(L*W*H)
φ0.8mm 12.5kg 2.5kg 15*15*8.5
φ1.0mm 50kg 10kg
φ1.2mm 80kg 16kg 20*18*10
φ1.5mm 130kg 26kg
φ1.8mm 180kg 36kg 25*25*12
φ2.0mm 200kg 40kg
φ2.5mm 300kg 60kg 30*30*15
φ3.0mm 400kg 80kg
φ3.5mm 450kg 90kg 42*42*22
φ4.0mm 500kg 100kg
φ5.0mm 600kg 120kg







Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 1

Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 2Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 3Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 4





Cable Loop Termination Kits - Feature:


Using wire rope, you can easily hang objects, permanently or temporarily, with the cable lopping grippers.

Grippers offer strength, reliability, adjustability, and can be re-used.

The Looping Gripper is a double-ended gripper with double side cable exits.

This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.




Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 5



Competitive Advantage:



1. We are derict maufacture,can be contrct the quality and price,to sale the high quality and best price forout customers.

2. The national patent of our looping gripper products.

3. We have over ten years of experience in suspension applications.

4. Free sample for our customer,but need you pay for the freight.

5. Suspension products and design solution supplied fast and freely.

6. Best design oriented for your special requirements.

7. Lifelong technical support.

8. Professional team support.

9. Standard Design.

10 .Concept proposal.

11. 3D Drawing.

12. Part delivery.




Our service:



1. We can deliver within short time. Several styles for your choose.

2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.

3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4. All of our products are produced by our professional workman, you can totally believe our service.

Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips 6



Contact us today for all your cable support needs.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!







FAQ:



How is the quality of your company controlled? How is the cost controlled?



We have four inspections before and after, and we have a complete set of QC inspection processes and solutions.



How do you ship the goods and how long does it take to arrive?



1, By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2, Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3, Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.



How to deal with the faulty?



Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
